THE Efficient SNOWGUN

THE EFFICIENT SNOWGUN

THE EFFICIENT SNOWMAKER

Unbeatable in marginal conditions.

Snowmaking down to - 1.0° C Wetbulb.

Consistant water flow control.

Excellent energy efficiency already at start.
Energy consuption from 1kWh per 1 cubic meters snow.

THE Efficient SNOWGUN

THE EFFICIENT SNOWGUN

THE ADVANCED SNOWMAKER

Cloud based communication.

Siemens industrial PLC.

Aluminum fan blades.

Weight less then 560 kg with 20 m of cable.
Easy maintenance.

THE

THE

REVOLUTIONARY

REVOLUTIONARY

SNOWMAKER

SNOWMAKER

READY FOR REVOLUTION

NPA

Meet SHERPA NPA: the best performing snowmaker on the market.

Watch the video ▸

CONTACT US FOR AN OFFER

SPECIFICATIONS & TECHNICAL DETAILS

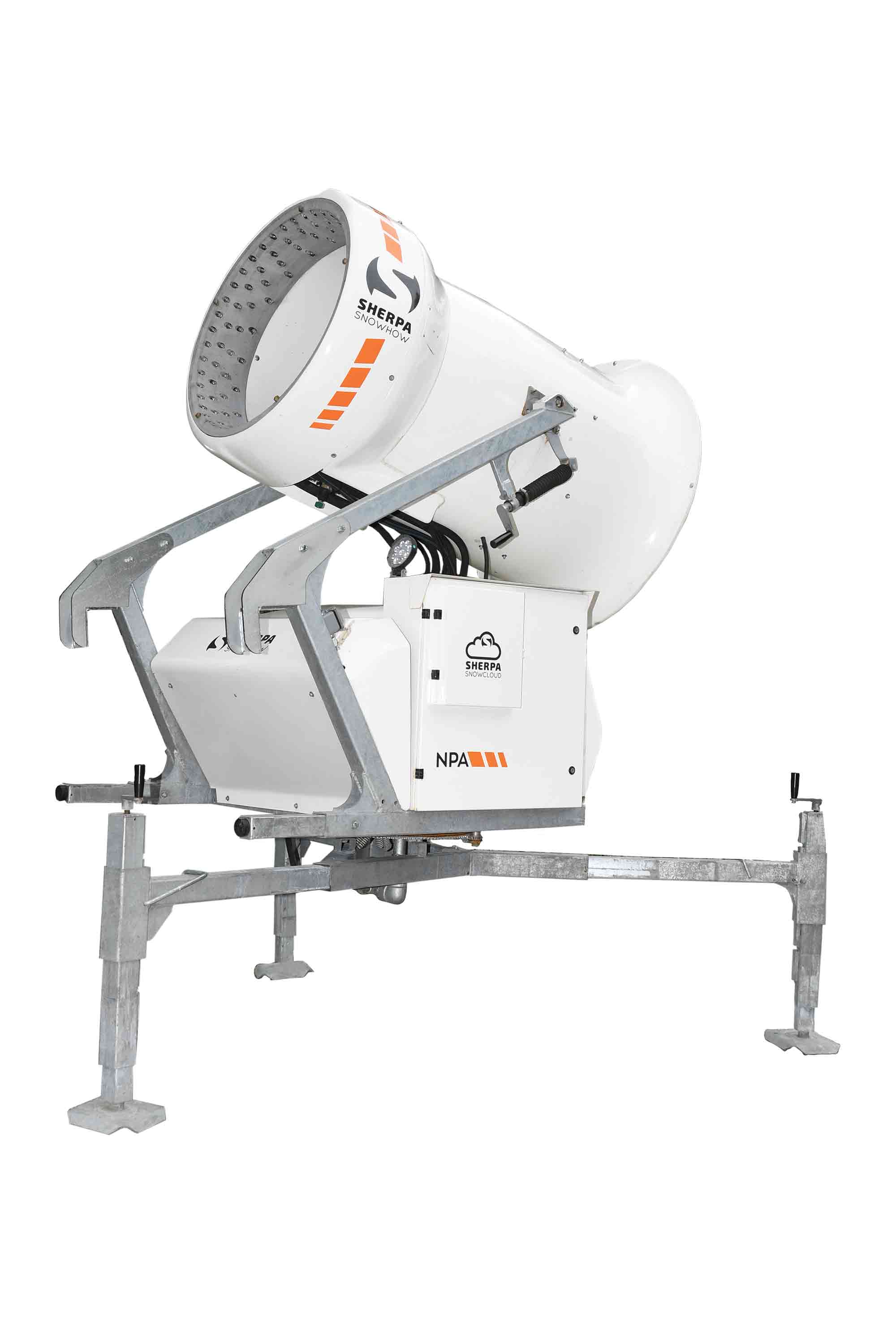

SHERPA NPA

COATED
WITH
SPECIAL
TEFLON.

COATED
WITH
SPECIAL
TEFLON.

UNBEATABLE
‍MARGINAL CONDITIONS.

HEAD

Snow quality regulated with 121 inox nozzles and 15 flow step combinations.
Patented SHERPA multistage nucleator system.
Minimum water pressure 8 bar.
Maximum water pressure 50 bar.
Minimum water flow 60 l/min @ start.
Maximum waterflow 640 l/m @ 50 bar.

BODY

Filter box with drain.
Heated swivel motor.
Heated hydrant motor.
Accessible water filter.
Siemens PLC with data SIM card.
Siemens PLC with data SIM card.
Siemens PLC with data SIM card.
Siemens PLC with data SIM card.
Siemens PLC with data SIM card.

STAND

Steel frame, hot galvanized.
Andock & helicopter hook.
Wheels optional for transport.
Mobile or tower mounted.
360 degrees swivel.
360 degrees swivel.
360 degrees swivel.
360 degrees swivel.
360 degrees swivel.

EASYMAINTENANCE.

HEAD

Fan with aluminum blades.
Fan power 15 kW, 1450 rpm @ 50 Hz.
Max noise 68 db(A) @ 20 m in front.
Fiberglass-epoxi-barel.
5 kW nozzle heating.
Ventilated weather sensor.

BODY

4 kW Atlas Copco compressor.
Optional oil free compressor.
1 pressure sensor before filter.
1 pressure sensor after filter.
Filter warning system.
Filter warning system.
Filter warning system.

STAND

THE
EFFICIENT
ADVANCED
REVOLUTIONARY
SNOWMAKER

SHERPA NPAthe best performing snowmaker on the market

SHERPA NPAthe most extreme throwing distance from a snowmaker

Video

ArlbergJETair-pressure snowmaker on the ground
